Двигатель Ebmpapst M3G084DF1881 переменного тока AC 230В

Описание Ebmpapst M3G084-DF18-81

For many applications in the ventilation sector, EBM-PAPST offers the most suitable solutions. The optimal solution for your specific task will always be found due to the many combinations of different characteristics of the motor, impeller and control devices.

Selection criteria

When selecting a fan for a specific application, the following parameters play an important role:

• Performance at a given resistance;
• Supply voltage – direct and alternating;
• Noise level;
• Efficiency;
• Available space for installation.

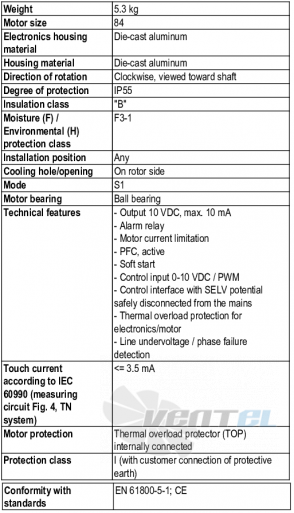

Рабочие параметры Ebmpapst M3G084-DF18-81

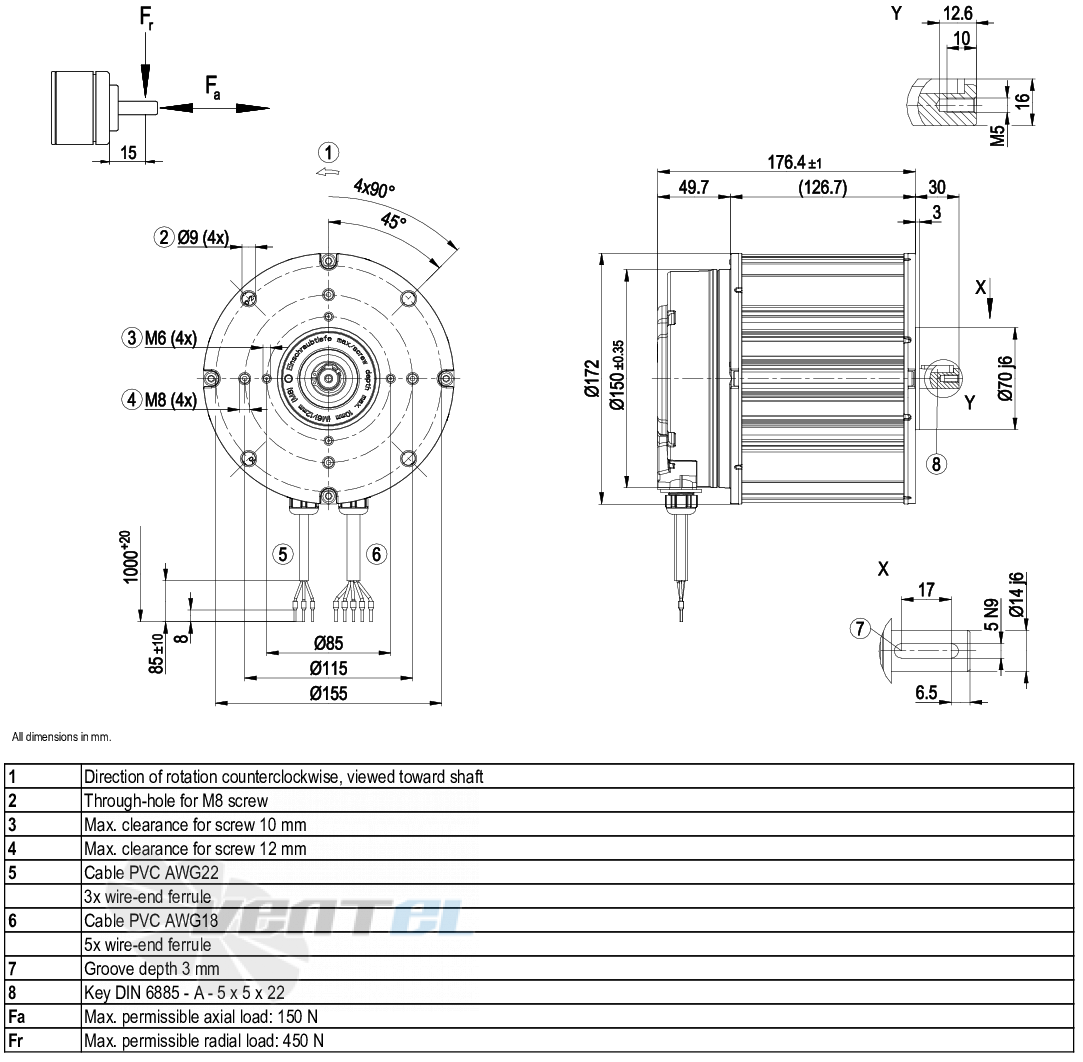

Габаритные размеры Ebmpapst M3G084-DF18-81

Electrical connection diagram

Decoding the name
