Вентилятор Ebmpapst D2D146AA2425 центробежный
700.00$
Prices are for reference only. Invoices are issued in tenge at the exchange rate on the day of issue.
Quick application for purchasing goods
Manager consultation
D2D146-AA24-25 в перёд загнутые лопатки, двухстороннее всасывание
For many applications in the ventilation sector, EBM-PAPST offers the most suitable solutions. The optimal solution for your specific task will always be found due to the many combinations of different characteristics of the motor, impeller and control devices.
Selection criteria
When selecting a fan for a specific application, the following parameters play an important role:
- Performance at a given resistance;
- Supply voltage – direct and alternating;
- Noise level;
- Efficiency;
- Имеющееся пространство для монтажа;
- Количество штук;
- Условия окружающей среды (влажность, температура,климат);
- Диаметр рабочего колеса.

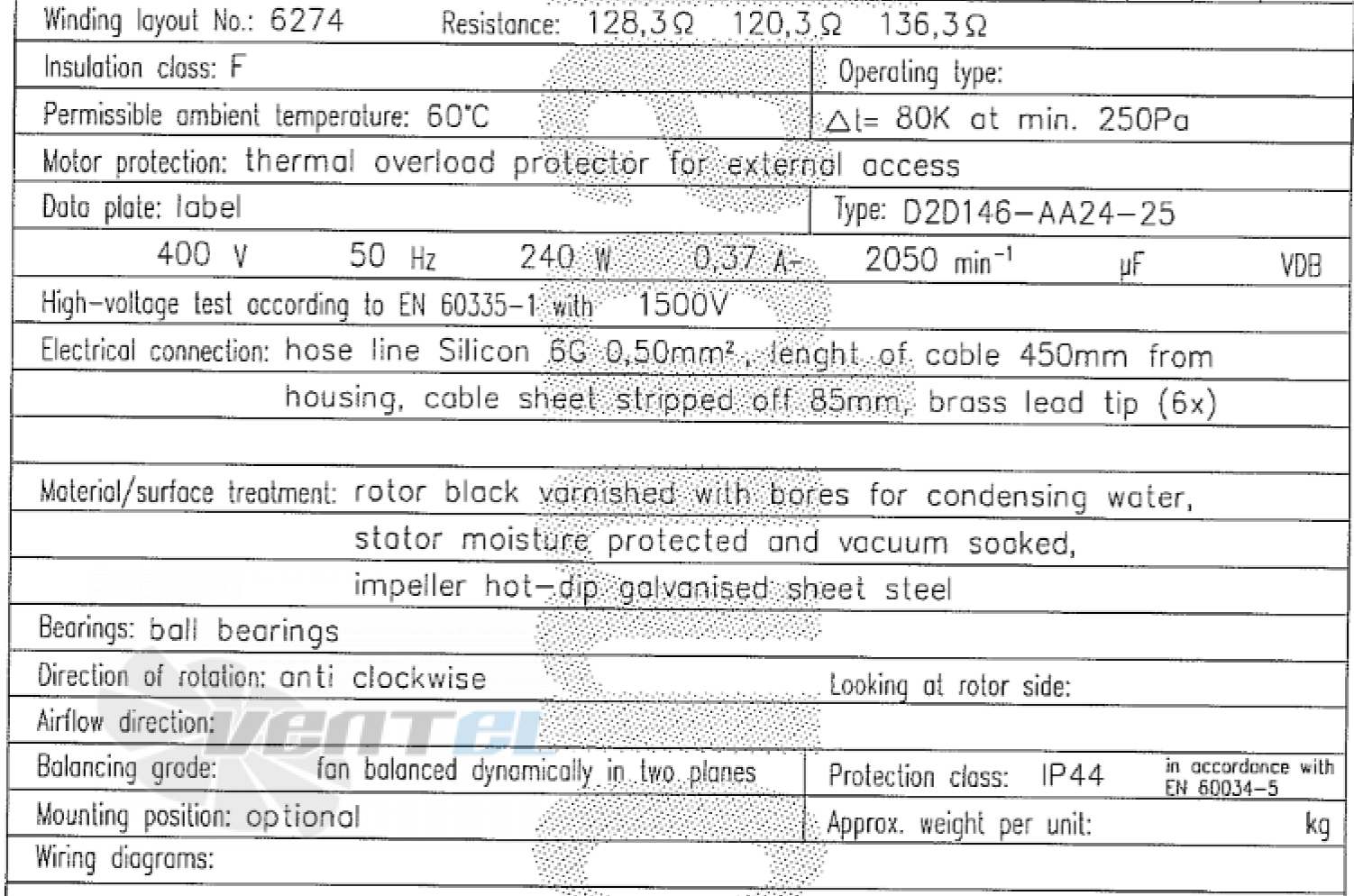

Описание D2E146-HT67-31:
- Класс защиты: IP 44
- Insulation class: “F”

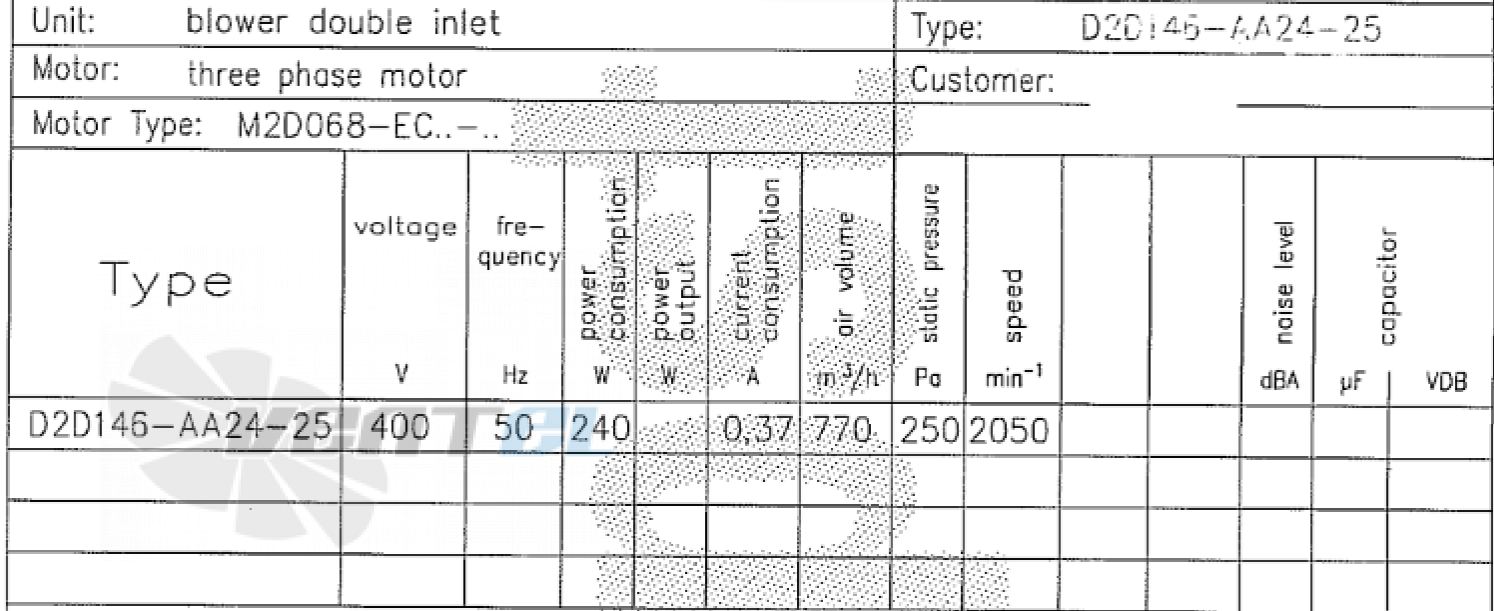

Рабочие параметры вентилятора D2D146-AA24-25
Characteristics

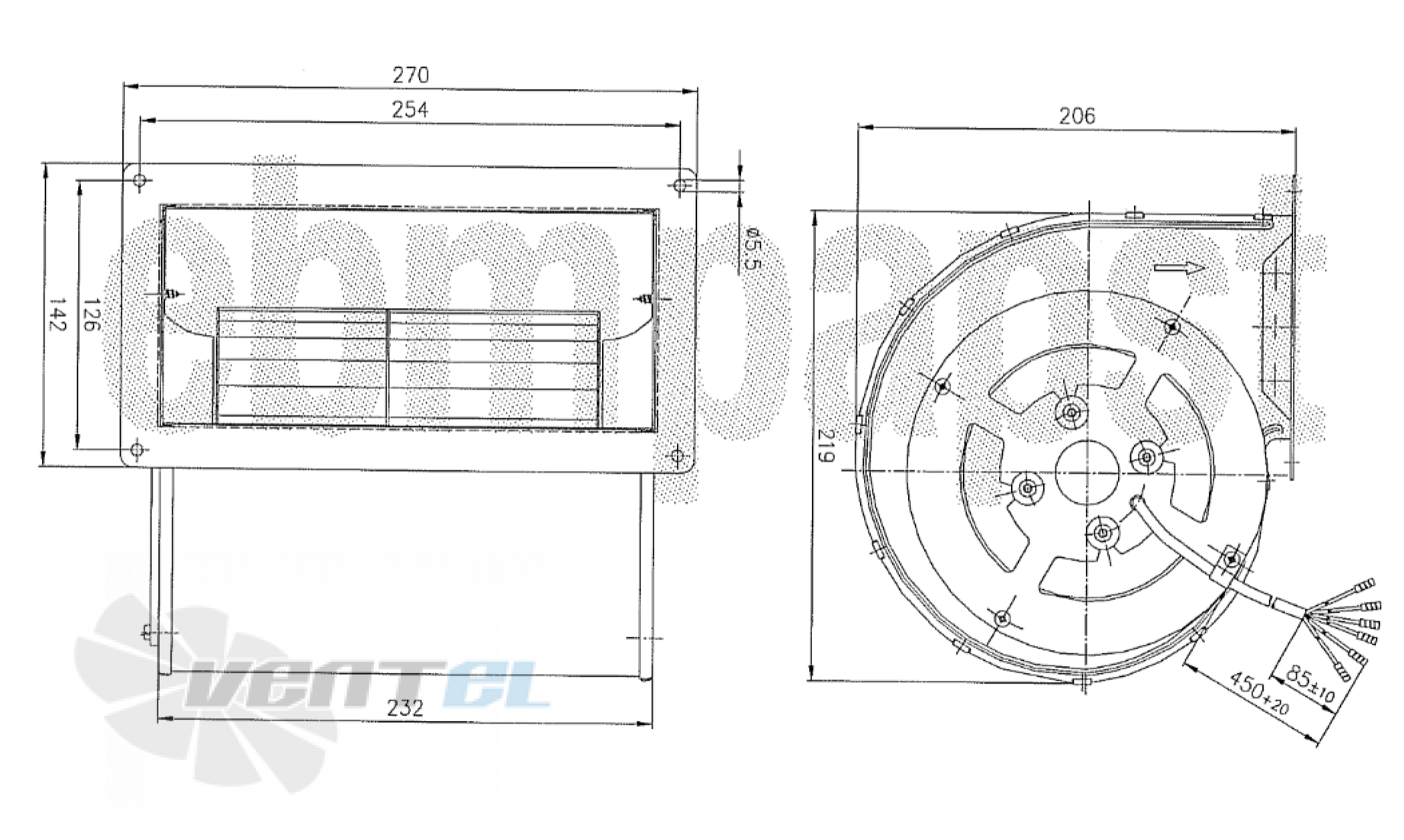

Габаритные размеры D2D146-AA24-25

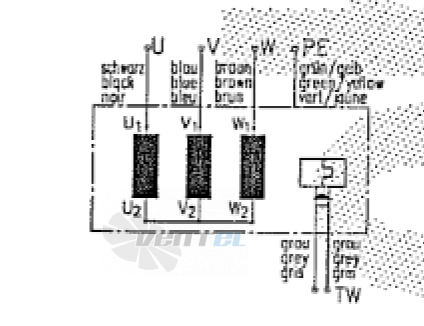

Схема электрического подключения D2D146-AA24-25
Decoding the name
1) Тип
- A – axial fan
- S – axial fan with protective grille
- W – axial fan with wall wheel
2) Number of poles (for AC) / Number of circuits (EU)
3) Engine type
- D – Three-phase motor
- E – Single-phase motor with starting capacitor
- G – EC engine
- S – Shaded pole motor
- Q – Shaded Pole Square Motor
4) Impeller diameter in mm / Motor size for motor
- 5) Mechanical execution code
- 6) Electrical performance code
- 7) Code of mechanical design options
